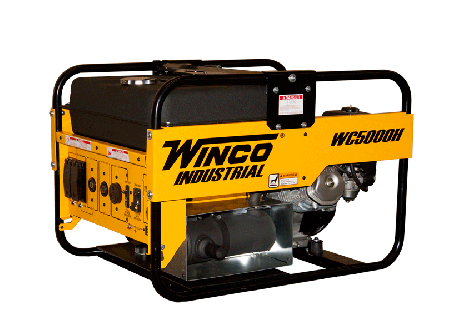

WC5000H
The WC5000H is the perfect generator to power table saws, small air compressors, saws, and drills. The Honda GX270 will run this generator for over 6.5 hours at full load between refuels. Our Switch-less Full Power™ is standard on this model and allows you to draw the full rated output from a single 120 volt, 240 volt outlet, or a combination of both without switching voltage settings. Standard features like powder coat paint, lifting eye, low oil protection, USFS approved spark arrestors, hour meter, 100% copper windings, Conserv-R automatic idle control, and Winco's proven reliability make this generator the perfect choice for industrial and rental applications.
| Max Power Rating | 5000 | |
| Cont. Power Rating | 4500 | |
| Voltage | 120/240 Volt 1 PH | |
| Cont. Current Rating | 37.5/18.75 | |
| Motor Starting Ability (Code G) | 1.5 hp | |
| Engine Make/Model | Honda GX270 | |
| Displacement/Type | 270 cc/OHV | |
| Cylinder Sleeves | Cast Iron | |
| Conserv-R Automatic Idle Control | Included | |
| Fuel Type |
Gasoline
|
|
| Starting System | Recoil | |
| Fuel Tank Capacity | 7 gal | |
| Low Oil Protection | Standard | |
| Running Time-Full Load | 10.2 hrs | |
| Running Time-Half Load | ||
| Hour Meter | Included | |
| 120 Volt Receptacles |
4x20A NEMA 5-20 GFCI 1x20A Locking GFCI NEMA L5-20 1x50A NEMA 5-50 |
|
| 240 Volt Receptacles |
None |
|
| 120/240 Volt Receptacles |
1x30A Locking NEMA L14-30 |
|
| Switchless Full Power | Included | |
| Dimensions | 32.7x22.9x22.1 in | |
| Shipping Weight | 248 lbs | |
| Warranty (Generator/Engine) | 2 yrs/3 yrs | |
| DB Rating @ 7 Meters | 74.3 | |
| CSA Approved | No | |
| CARB Approved | Yes | |
| Country Of Origin | USA | |
