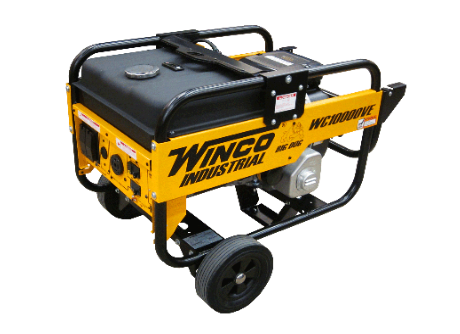

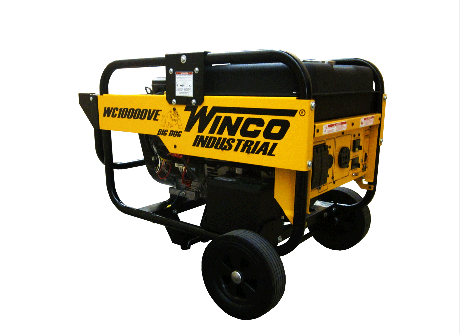

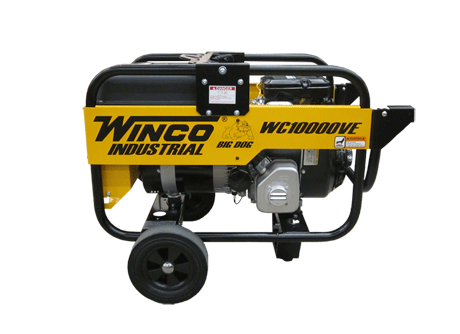

WC10000VE
The WINCO WC10000VE is a 40 amp continuous duty generator perfect for flat top roofing, concrete contractors, and general construction. The Briggs & Stratton Vanguard 18 HP engine is commercial grade and built to last for thousands of hours of use with proper maintenance. The generator and engine produce clean and smooth electrical power that is safe for sensitive electronics yet powerful enough to safely run compressors and other power tools. For flat top roofers this generator is large enough to run one robotic welder and one handheld welder.
Generator
Additional Features
|
Max Power Rating | 10500 | |
Cont. Power Rating | 9600 | |
Voltage | 120/240 Volt 1 PH | |
Cont. Current Rating | 80/40 amps | |
Motor Starting Ability (Code G) | 5 hp | |
Engine Make/Model | Vanguard 18HP | |
Displacement/Type | 570 cc/OHV | |
Cylinder Sleeves | Cast Iron | |
Conserv-R Automatic Idle Control | Included | |
Fuel Type |
Gasoline
|
|
Starting System | Recoil/Electric | |
Fuel Tank Capacity | 7 gal | |
Low Oil Protection | Standard | |
Running Time-Full Load | 4.3 hrs | |
Running Time-Half Load | ||
Hour Meter | Included | |
120 Volt Receptacles |
4x20A NEMA 5-20 GFCI |
|
240 Volt Receptacles |
1x30A Locking NEMA L6-30 |
|
120/240 Volt Receptacles |
1x60A NEMA 14-60 |
|
Switchless Full Power | N/A | |
Dimensions | 33.7x28x22.1 in | |
Shipping Weight | 276 lbs | |
Warranty (Generator/Engine) | 2 yrs/3 yrs | |
DB Rating @ 7 Meters | 78 dba | |
CSA Approved | No | |
CARB Approved | Yes | |
Country Of Origin | USA |
