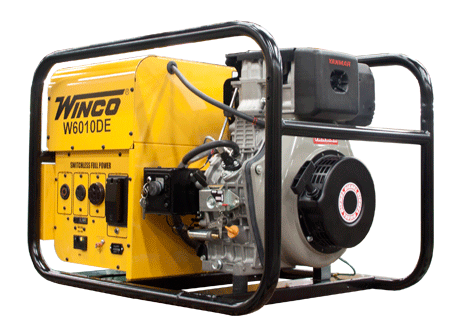

W6010DEX

Diesel generators are popular for the job site because they use the same fuel as many other pieces of equipment and give you more kWh per gallon of fuel while giving you long engine life. The W6010DE has a long-life Yanmar diesel engine with switchless full-power generator allowing the operator to draw the full 120V, full 240V or a combination of both without changing a switch. Perhaps most importantly, you know that since it is built by Winco it won't let your work crew down.


Max Power Rating 6000
Cont. Power Rating 5500
Voltage 120/240 Volt 1 PH
Cont. Current Rating 45.8/22.9 amps
Motor Starting Ability (Code G) 3 hp
Engine Make/Model Yanmar
Displacement/Type 435 cc/OHV
Cylinder Sleeves Other
Conserv-R Automatic Idle Control N/A
Fuel Type Diesel
Starting System Recoil/Electric
Fuel Tank Capacity 7 gal
Low Oil Protection Standard
Running Time-Full Load 12.2 hrs
Running Time-Half Load
Hour Meter Included
120 Volt Receptacles 2x20A NEMA 5-20 GFCI
1x50A NEMA 5-50
240 Volt Receptacles 1x30A Locking NEMA L6-30
120/240 Volt Receptacles 1x30A Locking NEMA L14-30
Switchless Full Power Included
Dimensions 33.5x23x23 in
Shipping Weight 310 lbs
Warranty (Generator/Engine) 2 yrs/2 yrs 2000 hrs
DB Rating @ 7 Meters 78 dba
CSA Approved No
CARB Approved Yes
Country Of Origin USA
