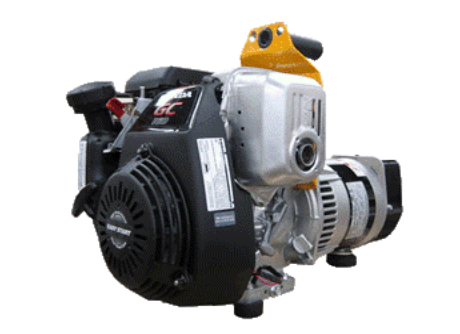

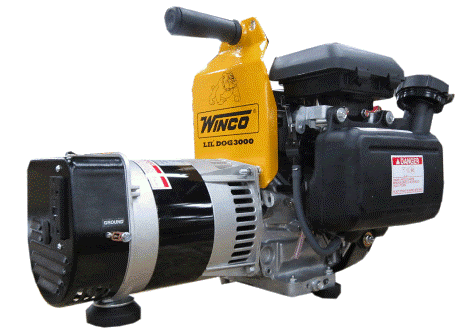

W3000H

The WINCO W3000H "Lil Dog" was designed to be light weight and ergonomic so the generator can be easily moved around on the jobsite. At just over 68 pounds it is the perfect tool for roofing contractors that need power for warranty and patch work. For all other types of small construction jobs it can be quicker to use this generator than to run a cord from another remote site. Regardless of the type of work you do, the WINCO "Lil Dog" should be part of each service truck in your fleet.

Engine

  • Honda GC160 engine
  • Standard low oil protection
  • CARB and EPA approved

Generator

  • 100% copper windings
  • 2xNEMA 5-20 GFCI outlets
  • 120V output

Additional Features

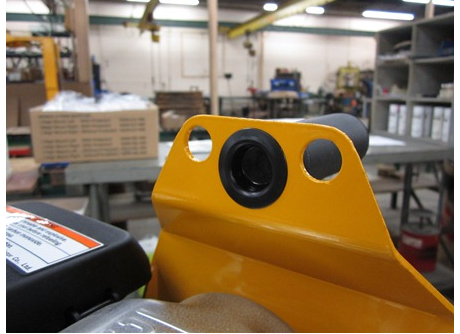

  • Carry handle allows the generator to be carried like a suit case
  • Two lifting eyes included standard
  • DuPont powder coat paint provides durable finish that helps protect the generator from the elements
  • Large rubber feet


Max Power Rating 3000
Cont. Power Rating 2400
Voltage 120 Volt 1 PH
Cont. Current Rating 20
Motor Starting Ability (Code G) .75 hp
Engine Make/Model Honda GC160
Displacement/Type 160 cc/OHV
Cylinder Sleeves Other
Conserv-R Automatic Idle Control N/A
Fuel Type Gasoline
Starting System Recoil
Fuel Tank Capacity 2 Qt
Low Oil Protection Standard
Running Time-Full Load 1.1 hrs
Running Time-Half Load 1.5 hrs
Hour Meter N/A
120 Volt Receptacles 2x20A NEMA 5-20 GFCI
240 Volt Receptacles None
120/240 Volt Receptacles None
Switchless Full Power N/A
Dimensions 21.4x14.5x16.5 in
Shipping Weight 70
Warranty (Generator/Engine) 1 yr
DB Rating @ 7 Meters 72
CSA Approved No
CARB Approved Yes
Country Of Origin USA
