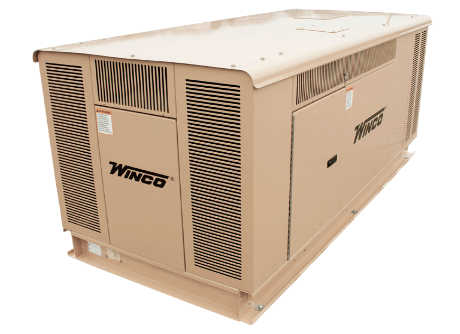

Winco PSS21

Winco PSS21

The WINCO PSS21 is designed to provide the most reliable emergency electrical power of any generator in its class. Most 20kW generators sold are air-cooled 3600 RPM generators available in single phase only. WINCO's PSS21 is powered by a liquid-cooled 1800 RPM engine that is capable of lasting several times longer than the air-cooled models. Whether you are protecting your family or business, the obvious choice for dependable emergency generator power is the WINCO PSS21.

Engine Features

  • Industrial GM 3.0L engine.
  • Liquid-cooled design extends life of generator over air-cooled models.
  • 1800 RPM operation is more fuel efficient and is quieter.
  • Field selectable between NG and LP gas with the flip of a switch.

Generator Features

  • Industrial grade Stamford generator ends.
  • Automatic Voltage Regulator provides +/-1% regulation.
  • Available in all common voltages.
  • Optional generator strip heater (reduces condensation) and Excitation Boost System (improves motor starting) are available.

Control Features

  • Complete digital instrumentation monitors and displays engine and generator operating parameters.
  • Safety shutdowns are configured to protect the generator and load from conditions that can cause expensive repairs.
  • Programmable inputs and outputs allow the generator to easily integrate into larger systems.
  • NFPA 110 configurations are available.
  • All alarms are visually annunciated on the front panel.
  • A 250 event log records important events to aid in troubleshooting and repair.

Other Features

  • Galvaneal steel enclosure is strong, corrosion resistant and quiet.
  • Critical grade muffler reduces noise output.
  • Side panels are completely removable to provide complete access to engine for routine maintenance.
  • Oil and coolant drain extensions are included standard.
  • Generator is shipped wet.
  • 100% load tested.
  • ETL listed to UL Std 2200.

*This engine is only EPA certified for standby applications. Prime power applications must be locally permitted and the owner is responsible for all engine warranty.

**This generator is available in 50hz and numerous other voltages. Contact the factory for information on configurations not listed in the standard specification sheet.

Engine Make GM
Engine Model Industrial
Cylinders In-Line 4
Engine Displacement 3.0 L
Cooling Liquid
Operating Speed 1800 RPM
Fuel NG/LP Gas Field Selectable
Emissions EPA/CARB Standby
Fuel Consumption (100% Load) 3.9 gal/hr (LP)
Max Output (kW) 25 (480V)
THD 5%
Voltage Regulation +/-1%
Digital Control
Engine Warranty 3500 hrs standby
Generator Warranty 1000 hrs/1 yr
ETL Listed UL 2200
