Product Page

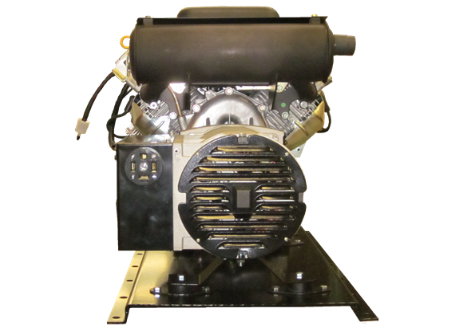

EC22000VE

WINCO has over 85 years of experience manufacturing industrial grade generators. We focus our attention on developing the highest quality generators available at the best long-term value. WINCO vehicle mounted generators are used in spray foam insulation, construction, mining, oil field, service, and emergency vehicles. These generators provide dependable power when reliability is a necessity.



Engine

  • B&S Vangaurd 993 CC
  • Cast iron cylinder sleeves increase engine life and reduce oil consumption
  • Standard low oil protection
  • CARB and EPA compliant

Generator

  • 100% Copper Windings
  • Fixed stator with skewed slot and a rotating inductor fitted with a damper cage
  • 2/3 ptich reduces harmonic content <5%
  • MAUX Auxiliary System ensures the generator end can withstand 300% motor starting inrush for 20 seconds.
  • AVR true RMS with voltage accuracy of +/- 1%

Additional Features

  • Optional fuel tank from WINCO that includes 15 gallon composite fuel tank, primer bulb, fuel cap with gauge, carbon canister, fuel line, connectors and brackets.
  • Electric key start at the generator.


Max Power Rating 22000
Cont. Power Rating 19000
Voltage 120/240 Volt 1 PH
Cont. Current Rating 79
Motor Starting Ability (Code G) N/A
Engine Make/Model B&S Vanguard Model 61
Displacement/Type 993 cc/OHV
Cylinder Sleeves Cast Iron
Conserv-R Automatic Idle Control N/A
Fuel Type Gasoline
Starting System Electric
Fuel Tank Capacity N/A
Low Oil Protection Standard
Running Time-Full Load N/A
Running Time-Half Load N/A
Hour Meter N/A
120 Volt Receptacles None
240 Volt Receptacles None
120/240 Volt Receptacles None
Switchless Full Power N/A
Dimensions 38x20.7x24.6 in
Shipping Weight 495
Warranty (Generator/Engine) 2 yrs/3 yrs
DB Rating @ 7 Meters N/A
CSA Approved No
CARB Approved Yes
Country Of Origin USA
