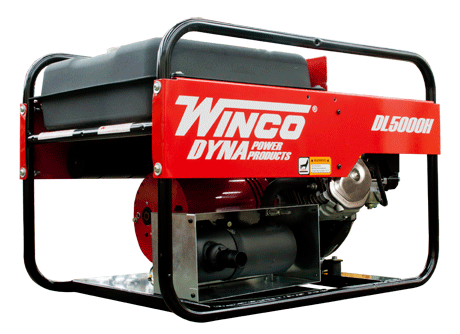

DL5000H
The DL5000H features the Honda GX270 commercial gasoline engine that will provide you with years of reliable service. The large 7 gallon fuel tank will operate the generator at half-load for 16 hours reducing the amount of time spent refueling the generator. You will be able to stay inside while neighbors with less fuel efficient generators are out looking for gas. The powder coat paint will protect your investment for years to come and keep your generator looking great.
| Max Power Rating | 5000 | |
| Cont. Power Rating | 4500 | |
| Voltage | 120/240 Volt 1 PH | |
| Cont. Current Rating | 37.4/18.7 amps | |
| Motor Starting Ability (Code G) | 1.5 hp | |
| Engine Make/Model | Honda GX270 | |
| Displacement/Type | 270 cc/OHV | |
| Cylinder Sleeves | Cast Iron | |
| Conserv-R Automatic Idle Control | N/A | |
| Fuel Type |
Gasoline
|
|
| Starting System | Recoil | |
| Fuel Tank Capacity | 7 gal | |
| Low Oil Protection | Standard | |
| Running Time-Full Load | 10.2 hrs | |
| Running Time-Half Load | 16 hrs | |
| Hour Meter | N/A | |
| 120 Volt Receptacles |
2x20A NEMA 5-20 |
|
| 240 Volt Receptacles |
None |
|
| 120/240 Volt Receptacles |
1x30A Locking NEMA L14-30 |
|
| Switchless Full Power | N/A | |
| Dimensions | 28x19x22 | |
| Shipping Weight | 148 lbs | |
| Warranty (Generator/Engine) | Consumer 2 yrs/3 yrs | |
| DB Rating @ 7 Meters | 79.5 | |
| CSA Approved | No | |
| CARB Approved | Yes/Specify When Ordering | |
| Country Of Origin | USA | |
